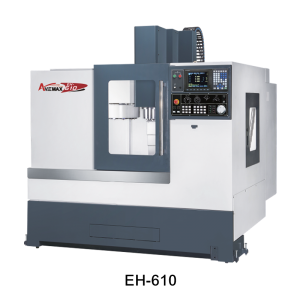

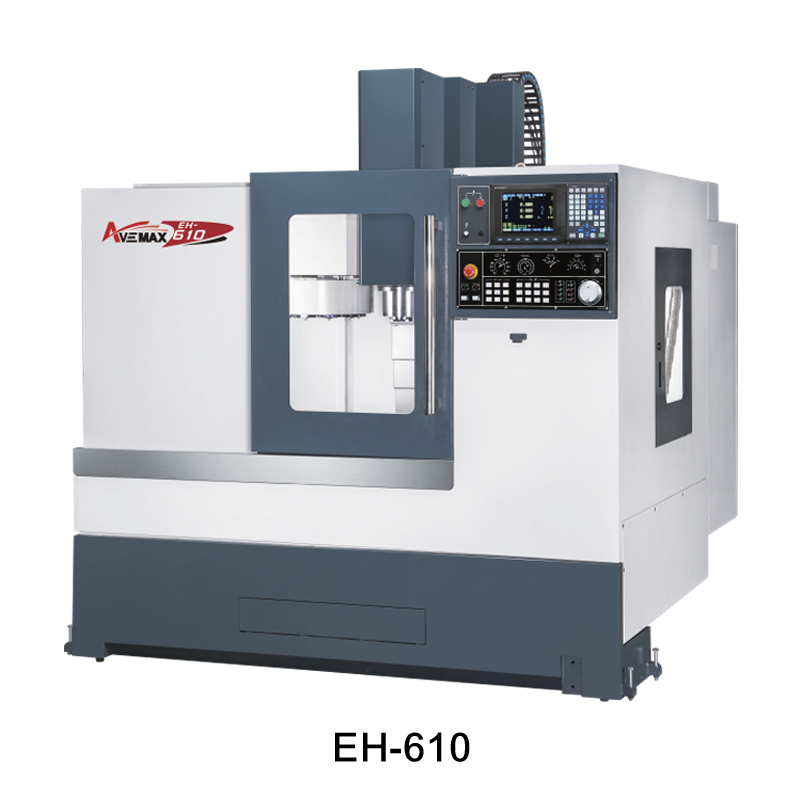

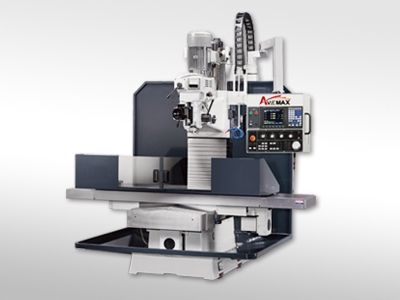

EH-610

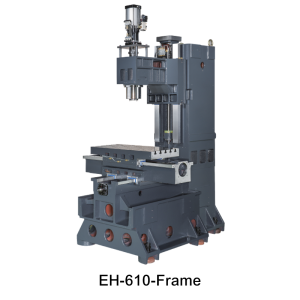

- MEEHANITE licensed castings are annealed and stress relieved to ensure maximum precision and vibration absorption.
- Hardened and ground C5 grade ballscrews pre-tensioned to minimize backlash, providing high precision movement and reducing heat deformation on all axes.
- BT40 belt type 8000RPM spindle is standard (10000/12000/15000RPM are available for option).
- Positioning accuracy: ±0.008mm/300mm
- Repeatability accuracy: ±0.005mm/300mm
- Telescopic steel way covers on three axes to protect ways and ballscrews from chips and coolant.
- Box way design on X/Y/Z axis is hardened and ground.
- High grade TURCITE-B is coated and with precision hand scrapping, giving maximum wear resistance.
※Arm type ATC is option.
|
Specification |
EH-610 |
| Table | |
| Table size | 710 x 350mm |
| T-slot of table (size x Q’ty) | 18 x 3mm |
| Longitudinal travel (X axis) | 610mm |
| Cross travel (Y axis) | 380mm |
| Vertical travel (Z axis) | 510mm |
| Spindle nose to table surface | 100~610mm |
| Spindle center to column surface | 430mm |
| Max. table load | 350Kgs |
|
Spindle |
|
| Taper | BT#40 (Opt. CAT#40/DIN#40) |
| Speed (RPM) | 8000RPM (Opt. 10000 / 12000 / 15000RPM) |
| Transmission | Belt |
|
Feed Rate |
|
| Rapid feed rate of XYZ | 15m/min |
| Cutting feed rate | 1~10m/min |
|
Motor |
|
| Spindle motor | 3.5/5.5KW |
| XYZ transmission | Direct coupling |
|
Automatic Tool Changer |
|

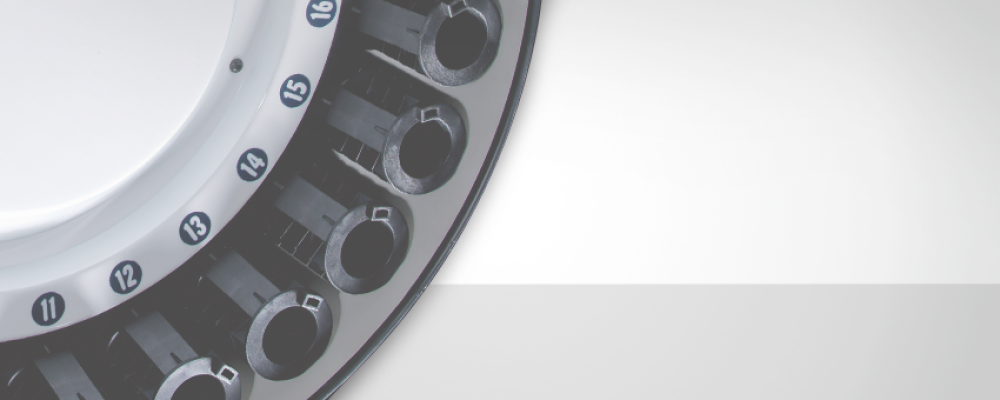

| Tool storage capacity | Armless 10 tools |
| Max. tool diameter | Full: 100mm / Next empty: 150mm |
| Max. tool length | 250mm |
| Max. tool weight | 6Kgs |
|
Miscellaneous |
|
| Coolant pump | 3/4HP |
| Lubrication pump | 75W |
| Air source | 6Kgs/c㎡ |
| Power requirement | 12KVA |
| Machine dimension (L x W x H) | 1800 x 1720 x 1987mm |
| Net weight | 2600Kgs |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
