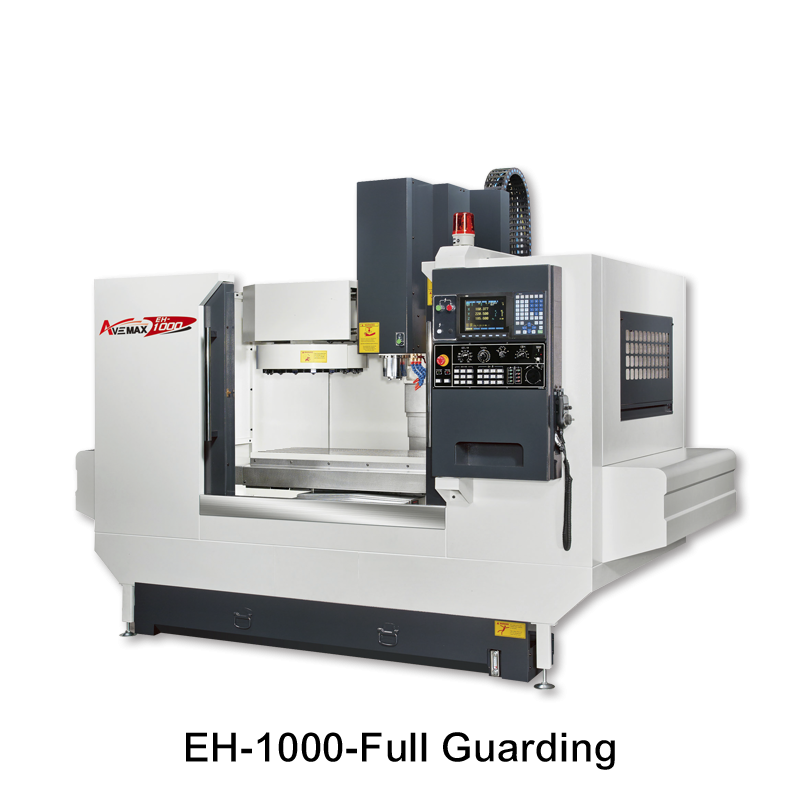

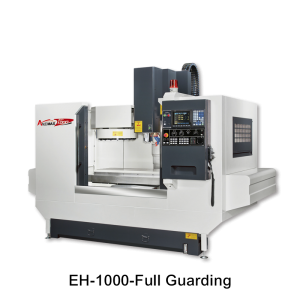

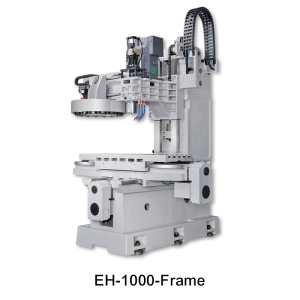

EH-1000
- MEEHANITE licensed castings are annealed and stress relieved to ensure maximum precision and vibration absorption.
- Hardened and ground C5 grade ballscrews pre-tensioned to minimize backlash, providing high precision movement and reducing heat deformation on all axes.
- BT40 belt type 8000RPM spindle is standard (10000/12000/15000RPM are available for option).
- Positioning accuracy: ±0.008mm/300mm
- Repeatability accuracy: ±0.005mm/300mm
- Telescopic steel way covers on three axes to protect ways and ballscrews from chips and coolant.
- Box way design on X/Y/Z axis is hardened and ground.
- High grade TURCITE-B is coated and with precision hand scrapping, giving maximum wear resistance.
※Arm type ATC is option.
| Specification | EH-1000 |
| Table | |
| Table size | 1200 x 410 mm |
| T-slot of table (size x Q’tyxDis.) | 18 x 5 mm |
| Longitudinal travel (X axis) | 1020 mm |
| Cross travel (Y axis) | 510 mm |
| Vertical travel (Z axis) | 510 mm |
| Spindle nose to top of table | 82.5~592.5 mm |
| Column surface to center of table | 525 mm |
| Max. load capacity | 700 Kgs |
| Spindle | |
| Spindle taper | BT40/CAT40/DIN40 |
| Spindle speed (RPM) | 8000rpm |
| Transmission of spindle & motor | Belt Drive |
| Feed Rate | |
| Rapid feed rate XYZ | 12M/min |
| Cutting feed rate | 1~10M/min |
| Motor | |
| Spindle motor | 10HP |
| Feed motors XYZ | 1.5 Kw (*Depending on CNC controller) |
| XYZ transmission | Timing belt pulley 1:2 |

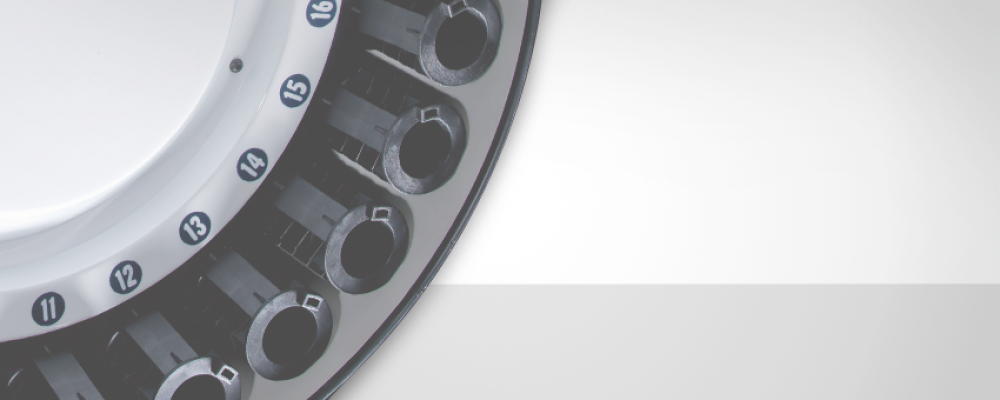

| Automatic Tool Changer | |
| Tool storage capacity | Armless 16 tools |
| Max. tool diameter | Full: 100 mm / Next empty: 150mm |
| Max. tool length | 250 mm |
| Max. tool weight | 7 Kgs |
| Miscellaneous | |
| Coolant pump | 3/4 HP |
| Lubrication pump | 75 W |
| Air source | 6 Kgs/c㎡ |
| Power requirement | 15 KVA |
| Machine dimension (L x W x H) | 3200 x 2200 x 2550 mm |
| Net weight | 4000 Kgs |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
