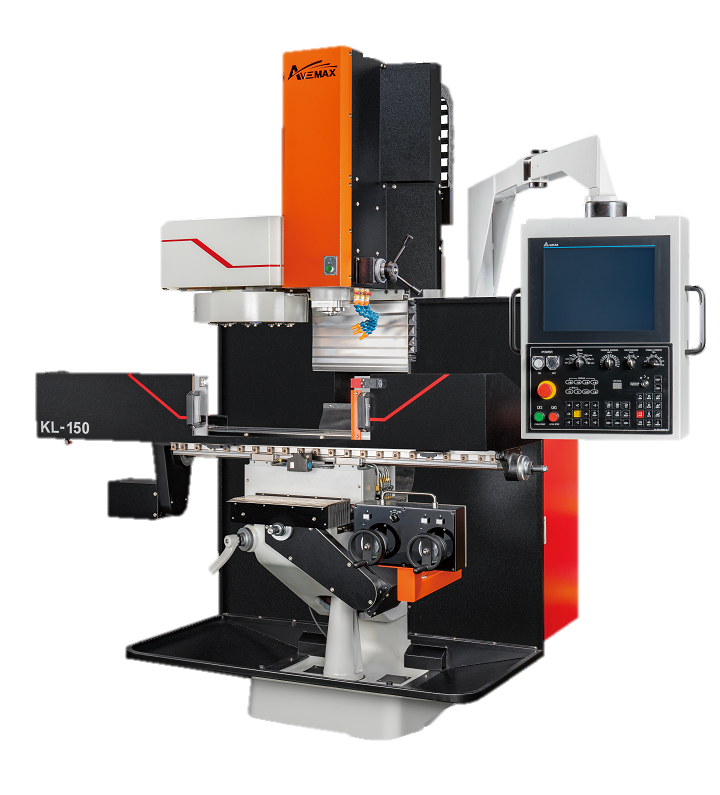

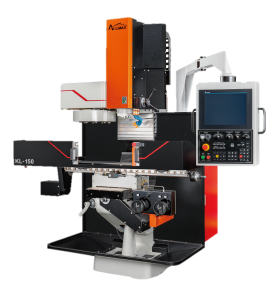

KL-150
- The perfect combination of conventional milling machine and CNC machining centers, which provides competitive prices and enhanced functions.
- Major castings are made of high grade cast iron, which has been stress relieved to provide a rigid machine structure.
- Linear guide way design on 3 axes leads to smooth and fast movement, which boosts productivity.
- Three-axis electrical handwheel provides easy operation and enhances efficiency (Machine knee up-down is operated manually).
- Z axis handwheel provides easy access to proform drilling and tapping manually.
- 1:2 ratio timing belt pulleys on XY axes to increase drive torque.
|
Specification |
KL-150 |
| TABLE | |
| Table size | 230 x 1245mm |
| T-slot of table (Q x size’ty) | 3 x 16mm |
| Max. table load | 200Kgs |
| TRAVEL | |
| Longitudinal travel (X axis) | 760mm |
| Cross travel (Y axis) | 260mm |
| Vertical travel of knee (Z axis) | 250mm |
| Spindle center to column surface | 279mm |
| Spindle nose to table surface | 100~350mm |
| Knee up/down | 102mm |
| SPINDLE | |
| Taper | BT30 |
| Speed (RPM) | 10000RPM |
| Transmission | Direct drive |
| FEED RATE | |
| Rapid traverse XYZ axes | 7.5M |
| XYZ axes feed rate | 0~5M |
| MOTOR | |
| Spindle motor | 3.5KW (5HP) |
| XYZ axes motor | 1KW/1KW/2KW |
| AUTOMATIC TOOL CHANGER | |
| Tool storage capacity | Armless 10 tools (Option) |
| MISCELLANEOUS | |
| Coolant pump | 3/4HP |
| Power requirement | 12KVA |
| MACHINE SIZE | |
| Overall width | 2450mm |
| Overall depth | 1500mm |
| Overall height | 2595mm |
| Net weight | 1300Kgs |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
