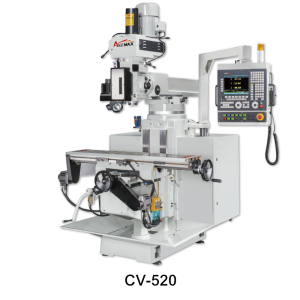

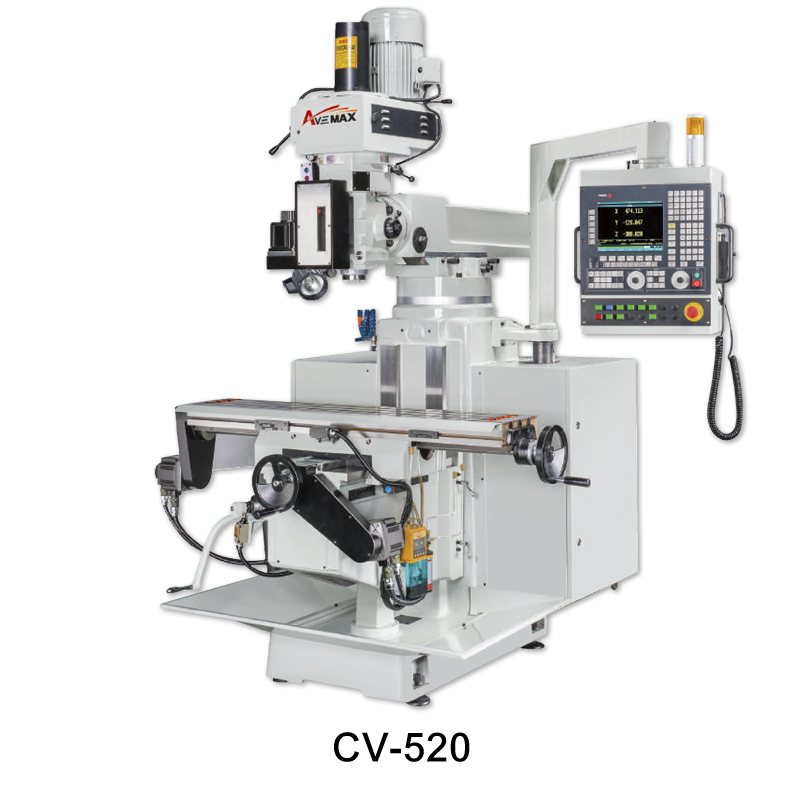

CV-520
- Spindle material is SCM415 full hardened through carbonizing heat treatment.
- NST#40 spindle with 5HP variable speed motor (inverter motor option is available).
- Spindle quill drive box is transmitted by ballscrew for better precision.
- Essential castings are made of high grade of Meehanite cast iron, which has been stressed, relieved to provide a rigid machine structure.
- Standard with 10” X 54” table with hardened and ground.
- Table T-slot is precision ground to exact tolerance.
- Box way design on Y and Z axes leads to better rigidity.
- Lifting screw diameter 38mm assures the stability while machining.
- Precision ballscrews are equipped on X&Y axes.
- X&Y slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface.
- 1:2 ratio timing belt pulleys on XY axes to increase drive torque.
| Specification | CV-520 |
| Table size | 1372 × 254mm |
| T-slot (NumberxWidth) | 3 × 16mm |
| Longitudinal | 700mm |
| Cross travel | 370mm |
| Travel of Knee | 440mm |
| Travel of Z axis (Quill) | 102mm |
| Ram travel | 560mm |
| Table to spindle nose | 150~528mm |
| Over swivel on turret | 360° |
| Head swivel (R&L) | 45° |
| Head tilt (up&down) | (Opt.45°) |
| Spindle to column | 168~730mm |
| Spindle motor | 5HP inverter motor |
| Spindle taper | NST#40 |
| Quill feeds | 0.04~0.08~0.14mm |
| Spindle speeds (rpm) | 5000rpm |
| Cutting feed rates | 0~3M/min |
| Rapid feed of XYZ | 5M/min |
| Overall height | 2385mm |
| Overall depth | 2070mm |
| Overall width | 2580mm |
|
Net weight |
1800Kgs |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
