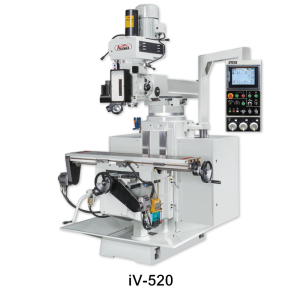

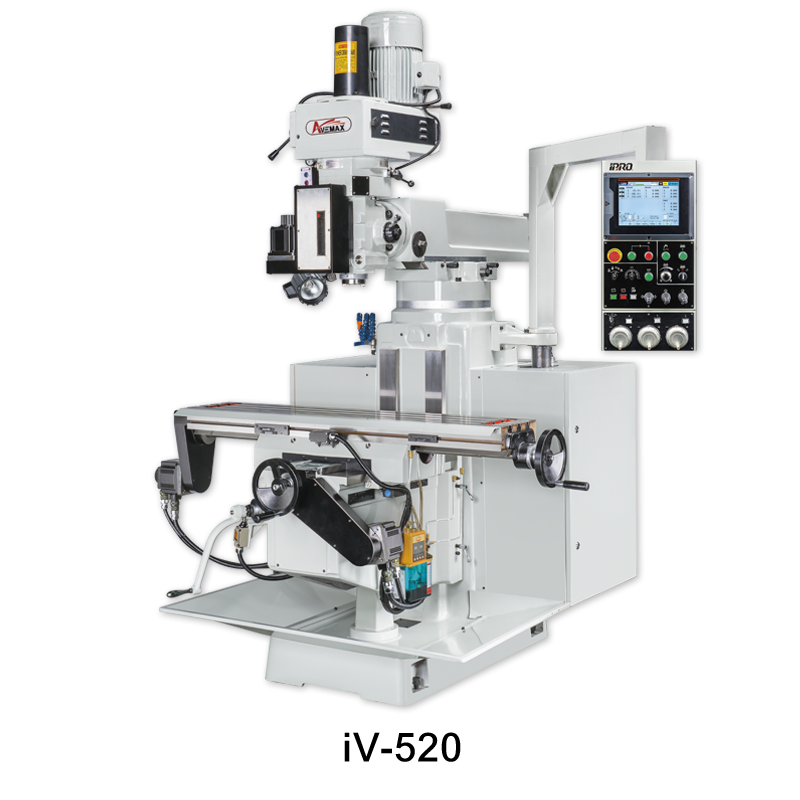

iV-520

  • Spindle material is SCM415 full hardened through carbonizing heat treatment.
  • NST#40 spindle with 5HP variable speed motor (inverter motor option is available).
  • Spindle quill drive box is transmitted by ballscrew for better precision.
  • Essential castings are made of high grade of Meehanite cast iron, which has been stressed, relieved to provide a rigid machine structure.
  • Standard with 10” X 54” table with hardened and ground.
  • Table T-slot is precision ground to exact tolerance.
  • Box way design on Y and Z axes leads to better rigidity.
  • Lifting screw diameter 38mm assures the stability while machining.
  • Precision ballscrews are equipped on X&Y axes.
  • X&Y slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface.
  • 1:2 ratio timing belt pulleys on XY axes to increase drive torque.



iPRO Intelligent Conversational Control System

Features

  • Intelligently integrates the control, machine and person.
  • Optimized HMI + PLC + Motion + COMM.
  • iPRO system enables you to program conventional machining operations right at your machine in an easy programming way.
  • iPRO system was designed for users where manual and automated operation are both useful and needed.
  • Built in functions: parameter memory, visual communication, USB connectivity, coaching program and coordinate adjustment record.
  • Powerful, easy and user-friendly. Great for your daily milling work.

DRO mode

  • Built in DRO mode provides DRO functions for your milling work. With this function, you are no longer have to spend extra money on DRO equipment for your machine.

Programming

  • Program the iPRO by making simple selections and inputting parameters in numbers.

Program Storage

  • An internal drive lets you save hundreds of typical programs. A USB port on iPRO is available to plug in a storage device for backing up programs and moving programs between iPRO and computers.


Help pages

  • Help pages are available for you to check different useful information quickly.

Learning

  • Even if you have never used a CNC before, you will be able to learn the iPRO in just a few hours. It is easier to operate with an iPRO than to use manual machining methods. You’ll quickly find out having the iPRO will pay off in job satisfaction.

Task scheduling

  • You are able to schedule 999 different machining tasks.

CAD/CAM input

  • Easily transfer your 2D CAD/CAM codes into the system by using USB flash drive.
  • Allow you to do milling work by following your 2D CAD/CAM design .
Specification iV-520
Travel
X/Y/Z travel manual way: 700/370/440mm (28"/15"/17")
Spindle nose to table surface 150~528mm (5.9"~20.7")
Spindle center to column surface 168~730mm (6.6"~29")
Ram travel 560mm (22")
Table
Table size 1372 x 254mm (54" x 10")
Table T-slot (No. x size) 3 x 16mm (3 x 0.63")
Max. table load 350kgs (771 Lbs)
Spindle
Spindle taper NST#40
Spindle speed 5000rpm
Quill feed 0.04mm-0.08mm-0.14mm (0.0015"-0.003"-0.006")
Transmission Variable speed (Opt. inverter)
Quill travel manual way:102mm (4")
Over swivel on turret 360
Head swivel (R&L) +/-45
Head swivel (Up & down) Option:+/-45
XY feed rate 0~3M/min (0-0.12")
Rapid feed rate XYZ 5M/min (0.2"/min)
Motor
Spindle motor 5HP inverter motor
XYZ motor 1Kw AC servo motor
XYZ transmission 1:2 Belt
Coolant pump 1/8HP
Machine size
Overall width (A) 2580mm (102")
Overall depth (B) 2070mm (82")
Overall height (C) 2385mm (91")
Net weight  1800kgs (3,968 Lbs)

We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
