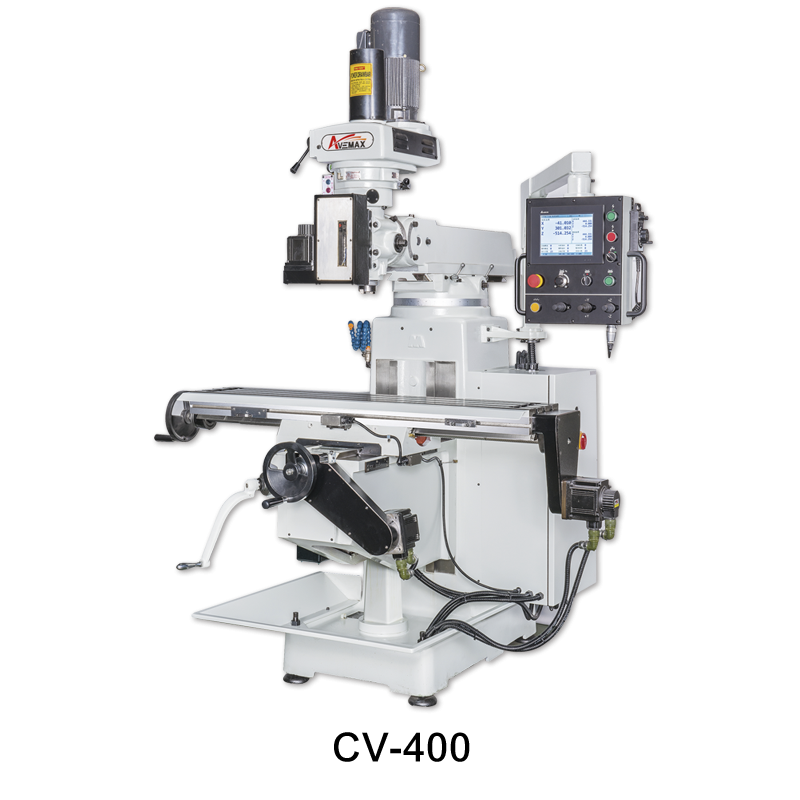

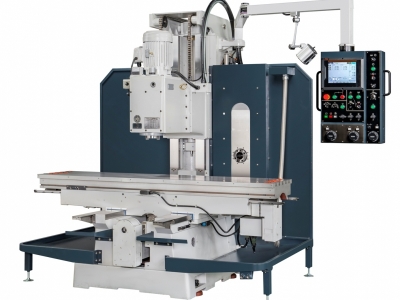

CV-400
- Spindle material is SCM415 full hardened through carbonizing heat treatment
- NST#30/R8 spindle with 3HP variable speed motor (inverter motor option is available).
- Spindle quill drive box is transmitted by ballscrew for better precision.
- Essential castings are made of high grade of Meehanite cast iron, which has been stressed and relieved to provide a rigid machine structure.
- Standard with 10” X 54” table with hardened and ground.
- Table T-slot is precision ground to exact tolerance.
- Precision ballscrews are equipped on X&Y axes.
- X and Y slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface.
- 1:2 ratio timing belt pulleys on XY axes to increase drive torque.
| Specification | CV-400 |
| Table size | 1370 × 250mm |
| T-slot (NumberxWidth) | 3 × 15.875mm |
| Longitudinal | 715mm |
| Cross travel | 330mm |
| Travel of Knee | 355mm |
| Travel of Z axis (Quill) | 127mm |
| Ram travel | 560mm |
| Table to spindle nose | 150~505mm |
| Over swivel on turret | 360° |
| Head swivel (R&L) | 45° |
| Head tilt (up&down) | 45° |
| Spindle to column | 159~719mm |
| Spindle motor | 3HP |
| Spindle taper | NST#30 (NST#40 option) |
| Quill feeds | 0.04~0.08~0.14mm |
| Spindle speeds (rpm) | 60HZ 60~4500rpm |
| 50HZ 50~3800rpm | |
| Longitudinal/Cross feed rates | 0~3000mm/min |
| Rapid traverse on XY | 5000mm/min |
| Overall height | 2120mm |
| Overall depth | 1850mm |
| Overall width | 1900mm |
|
Net weight |
1400Kgs |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
