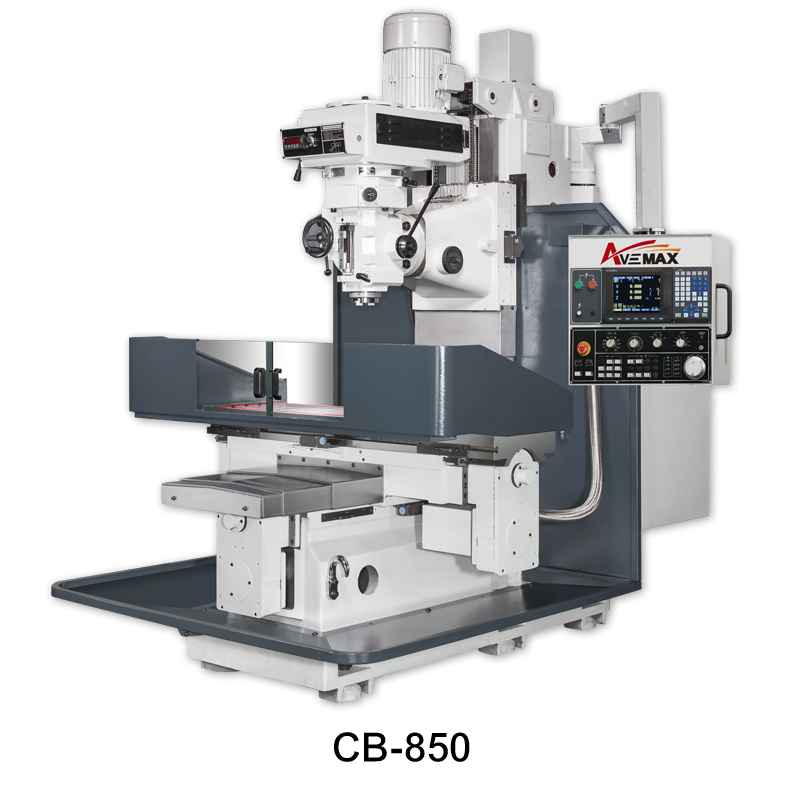

CB-850
- Comes standard with EVS head.
- Precise ballscrews are equipped on X and Y axes.
- Equipped with 1:2 ratio timing belt pulleys on XYZ axes to increase drive torque and reduce the cost of axes motors.
- NST#40 spindle with 5HP inverter motor.
- Spindle material is SCM415 full piece by hardened and ground.
- Essential castings are made of high grade of Meehanite cast iron, which has been stressed, relieved to provide a rigid machine structure.
- Dovetail design on X slideway, and box way design on YZ slideways.
- Precise ballscrews are equipped on X and Y axes. XY slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface.
- XYZ slideways, table and T-slot are hardened and ground for wear resistance and excellent longevity.
- Equipped with 1:2 ratio timing belt pulleys on XYZ axes to increase drive torque and reduce the cost of axes motors.
- YZ slideways are protected by high grade steel covers.
| Specification | CB-850 |
| Table Size | 1270 x 305mm |
| T slots of table (number x width) | 3 x 16mm |
| Longitudinal travel | 850mm |
| Cross travel | 450mm |
| Vertical travel | 450mm |
| Quill travel | 140mm |
| Spindle nose to table surface | 85~585mm |
| Head swivel (R&L) | 45° |
| Spindle motor | 5HP |
| Spindle taper | NST#40 |
| Spindle speed | 3600RPM |
| Quill feed rate | 0.035~0.07~0.14mm/min |
| Spindle to columm surface | 510mm |
| XY feed rates | 0~750mm/min |
| XY rapid traverse | 7.5m/min |
| Length x Width x Height | 2170 x 1975 x 2474mm |
| Net weight | 2100Kgs |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
