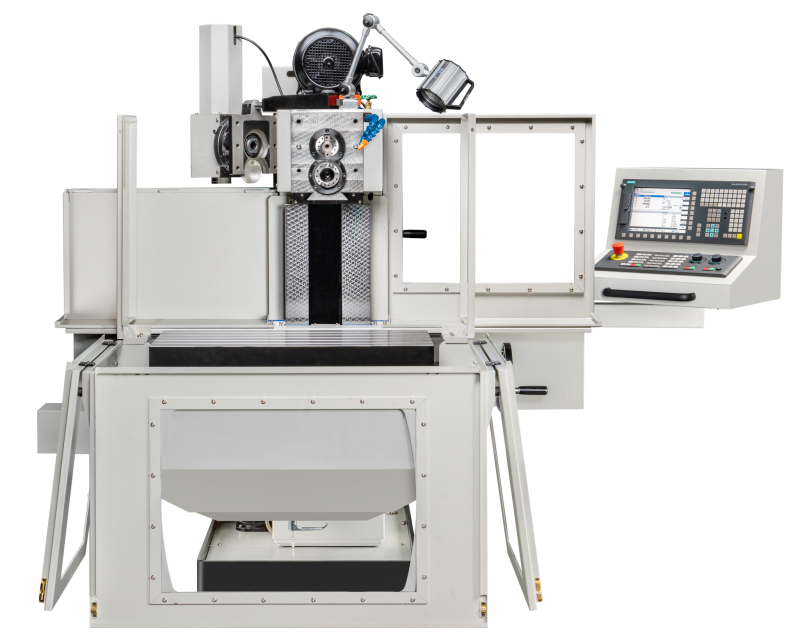

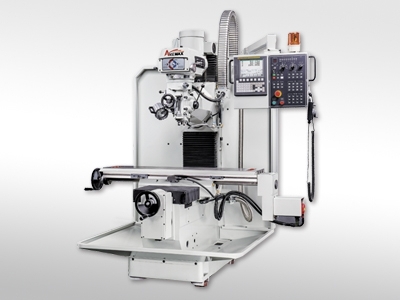

CVH-500
- Spindle taper BT40.
- With Hi-Low speed, max speed is 4000rpm.
- Precise ballscrews on XYZ.
- Manual and CNC mode change by button.
- Vertical spindle head standard with sprial bevel gear.
- 5HP horizontal spindle head, Hi-low speed change by gear transmission (without belt).
| Specification | CVH500 | |
| Table | ||
| Table Size (L x W) | 359x800 mm | |
| T slots (NumberxWidthxInterval) | 5x14mm | |
| Table load capacity | 200 kgs | |
| Longitudinal travel | 500 mm | |
| Cross travel | 350 mm | |
| Vertical travel | 381 mm | |
| Vertical spindle nose to table surface | 60.5 ~ 441.5mm | |
| Vertical spindle center to column surface | 189 ~ 539mm | |
| Horizontal spindle center to table surface | 103 ~ 484mm | |
| Horizontal spindle nose to column surface | 37 ~ 387mm | |
| Vertical & horizontal spindle | ||
| Spindle speed | High | 510 ~ 4020rpm |
| Low | 65 ~ 515rpm | |
| Taper | SK40 | |
| Transmissioin | Belt | |
| Feed Rate | ||
| Rapid feed rate of X/Y/Z Axes | XY:5M/ Z:2M | |
| Cutting feed rate of X/Y/Z Axes | XY:1~5M/ Z:1~2M | |
| Motor | ||
| Spindle motor | Vertical/ Horizontal spindle | 5HP inverter motor |
| XYZ motor transmission | Belt | |
| Coolant pump | 1/6HP | |
| Hydraulic tank | Max 50kg | |
| Lubrication pump | Max 15kg | |
| Overall height | 1900 mm | |
| Overall depth | 2145 mm | |
| Overall width | 2345 mm | |
| Net weight | 1300 kgs | |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
